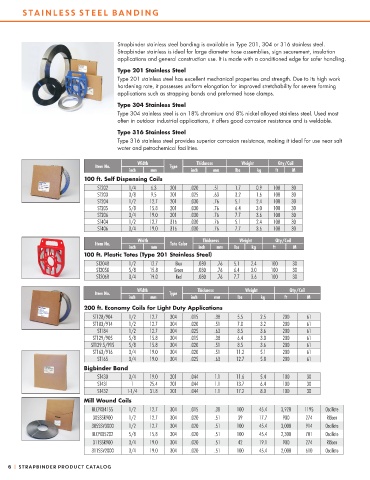

Page 6 - Strapbinder

STAINLESS STEEL BANDING

Strapbinder stainless steel banding is available in Type 201, 304 or 316 stainless steel.
Strapbinder stainless is ideal for large diameter hose assemblies, sign securement, insulation
applications and general construction use. It is made with a conditioned edge for safer handling.

Type 201 Stainless Steel
Type 201 stainless steel has excellent mechanical properties and strength. Due to its high work
hardening rate, it possesses uniform elongation for improved stretchability for severe forming
applications such as strapping bands and preformed hose clamps.

Type 304 Stainless Steel
Type 304 stainless steel is an 18% chromium and 8% nickel alloyed stainless steel. Used most
often in outdoor industrial applications, it offers good corrosion resistance and is weldable.
Type 316 Stainless Steel
Type 316 stainless steel provides superior corrosion resistance, making it ideal for use near salt
water and petrochemical facilities.

Width Thickness Weight Qty/Coil
Item No. Type
inch mm inch mm lbs kg ft M
100 ft. Self Dispensing Coils
ST202 1/4 6.3 201 .020 .51 1.7 0.9 100 30
ST203 3/8 9.5 201 .025 .63 3.2 1.6 100 30
ST204 1/2 12.7 201 .030 .76 5.1 2.4 100 30
ST205 5/8 15.8 201 .030 .76 6.4 3.0 100 30
ST206 3/4 19.0 201 .030 .76 7.7 3.6 100 30
ST404 1/2 12.7 316 .030 .76 5.1 2.4 100 30
ST406 3/4 19.0 316 .030 .76 7.7 3.6 100 30

Width Thickness Weight Qty/Coil
Item No. Tote Color
inch mm inch mm lbs kg ft M
100 ft. Plastic Totes (Type 201 Stainless Steel)
ST204B 1/2 12.7 Blue .030 .76 5.1 2.4 100 30
ST205G 5/8 15.8 Green .030 .76 6.4 3.0 100 30
ST206R 3/4 19.0 Red .030 .76 7.7 3.6 100 30

Width Thickness Weight Qty/Coil
Item No. Type
inch mm inch mm lbs kg ft M
200 ft. Economy Coils for Light Duty Applications
ST128/904 1/2 12.7 304 .015 .38 5.5 2.5 200 61
ST183/914 1/2 12.7 304 .020 .51 7.0 3.2 200 61
ST184 1/2 12.7 304 .025 .63 8.5 3.6 200 61
ST129/905 5/8 15.8 304 .015 .38 6.4 3.0 200 61
ST129.5/915 5/8 15.8 304 .020 .51 8.5 3.6 200 61
ST163/916 3/4 19.0 304 .020 .51 11.2 5.1 200 61
ST165 3/4 19.0 304 .025 .63 12.7 5.8 200 61
Bigbinder Band
ST430 3/4 19.0 201 .044 1.1 11.6 5.4 100 30
ST431 1 25.4 201 .044 1.1 13.7 6.4 100 30
ST432 1-1/4 31.8 201 .044 1.1 17.2 8.0 100 30
Mill Wound Coils
BLCPX04155 1/2 12.7 304 .015 .38 100 45.4 3,920 1195 Oscillate
305SSR900 1/2 12.7 304 .020 .51 39 17.7 900 274 Ribbon
305SSV3000 1/2 12.7 304 .020 .51 100 45.4 3,000 914 Oscillate
BLCPX05202 5/8 15.8 304 .020 .51 100 45.4 2,300 701 Oscillate
311SSR900 3/4 19.0 304 .020 .51 42 19.1 900 274 Ribbon
311SSV2000 3/4 19.0 304 .020 .51 100 45.4 2,000 610 Oscillate

6 | STRAPBINDER PRODUCT CATALOG
