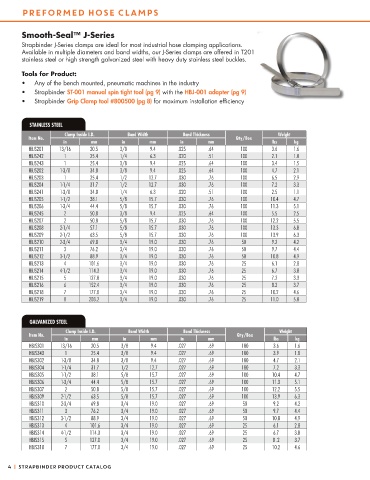

PREFORMED HOSE CLAMPS

Smooth-Seal™ J-Series
Strapbinder J-Series clamps are ideal for most industrial hose clamping applications.
Available in multiple diameters and band widths, our J-Series clamps are offered in T201
stainless steel or high strength galvanized steel with heavy duty stainless steel buckles.

Tools for Product:
• Any of the bench mounted, pneumatic machines in the industry
• Strapbinder ST-001 manual spin tight tool (pg 9) with the HBJ-001 adapter (pg 9)
• Strapbinder Grip Clamp tool #800500 (pg 8) for maximum installation efficiency

STAINLESS STEEL
Clamp Inside I.D. Band Width Band Thickness Weight
Item No. Qty/Box
in mm in mm in mm lbs kg
HBJS201 13/16 20.5 3/8 9.4 .025 .64 100 3.6 1.6
HBJS242 1 25.4 1/4 6.3 .020 .51 100 2.1 1.0
HBJS243 1 25.4 3/8 9.4 .025 .64 100 3.4 1.5
HBJS202 1-3/8 34.8 3/8 9.4 .025 .64 100 4.7 2.1
HBJS203 1 25.4 1/2 12.7 .030 .76 100 6.5 2.9
HBJS204 1-1/4 31.7 1/2 12.7 .030 .76 100 7.2 3.3
HBJS241 1-3/8 34.8 1/4 6.3 .020 .51 100 2.5 1.1
HBJS205 1-1/2 38.1 5/8 15.7 .030 .76 100 10.4 4.7
HBJS206 1-3/4 44.4 5/8 15.7 .030 .76 100 11.3 5.1
HBJS245 2 50.8 3/8 9.4 .025 .64 100 5.5 2.5
HBJS207 2 50.8 5/8 15.7 .030 .76 100 12.2 5.5
HBJS208 2-1/4 57.1 5/8 15.7 .030 .76 100 13.3 6.0
HBJS209 2-1/2 63.5 5/8 15.7 .030 .76 100 13.9 6.3
HBJS210 2-3/4 69.8 3/4 19.0 .030 .76 50 9.2 4.2
HBJS211 3 76.2 3/4 19.0 .030 .76 50 9.7 4.4
HBJS212 3-1/2 88.9 3/4 19.0 .030 .76 50 10.8 4.9
HBJS213 4 101.6 3/4 19.0 .030 .76 25 6.1 2.8
HBJS214 4-1/2 114.3 3/4 19.0 .030 .76 25 6.7 3.0
HBJS215 5 127.0 3/4 19.0 .030 .76 25 7.2 3.3
HBJS216 6 152.4 3/4 19.0 .030 .76 25 8.2 3.7
HBJS218 7 177.8 3/4 19.0 .030 .76 25 10.2 4.6
HBJS219 8 203.2 3/4 19.0 .030 .76 25 11.0 5.0

GALVANIZED STEEL
Clamp Inside I.D. Band Width Band Thickness Weight
Item No. Qty/Box
in mm in mm in mm lbs kg
HBJS301 13/16 20.5 3/8 9.4 .027 .69 100 3.6 1.6
HBJS343 1 25.4 3/8 9.4 .027 .69 100 3.9 1.8
HBJS302 1-3/8 34.8 3/8 9.4 .027 .69 100 4.7 2.1
HBJS304 1-1/4 31.7 1/2 12.7 .027 .69 100 7.2 3.3
HBJS305 1-1/2 38.1 5/8 15.7 .027 .69 100 10.4 4.7
HBJS306 1-3/4 44.4 5/8 15.7 .027 .69 100 11.3 5.1
HBJS307 2 50.8 5/8 15.7 .027 .69 100 12.2 5.5
HBJS309 2-1/2 63.5 5/8 15.7 .027 .69 100 13.9 6.3
HBJS310 2-3/4 69.8 3/4 19.0 .027 .69 50 9.2 4.2
HBJS311 3 76.2 3/4 19.0 .027 .69 50 9.7 4.4
HBJS312 3-1/2 88.9 3/4 19.0 .027 .69 50 10.8 4.9
HBJS313 4 101.6 3/4 19.0 .027 .69 25 6.1 2.8
HBJS314 4-1/2 114.3 3/4 19.0 .027 .69 25 6.7 3.0
HBJS315 5 127.0 3/4 19.0 .027 .69 25 8 .2 3.7
HBJS318 7 177.8 3/4 19.0 .027 .69 25 10.2 4.6
